Description
Key Features
- Built in high definition camera for image authentication.
- Supports Patented Live & Fake Finger Detection for Secure Access to Offices.
- Supports up to 10000 maximum users
- Supports all prox, smart and mobile access cards including all leading brands.

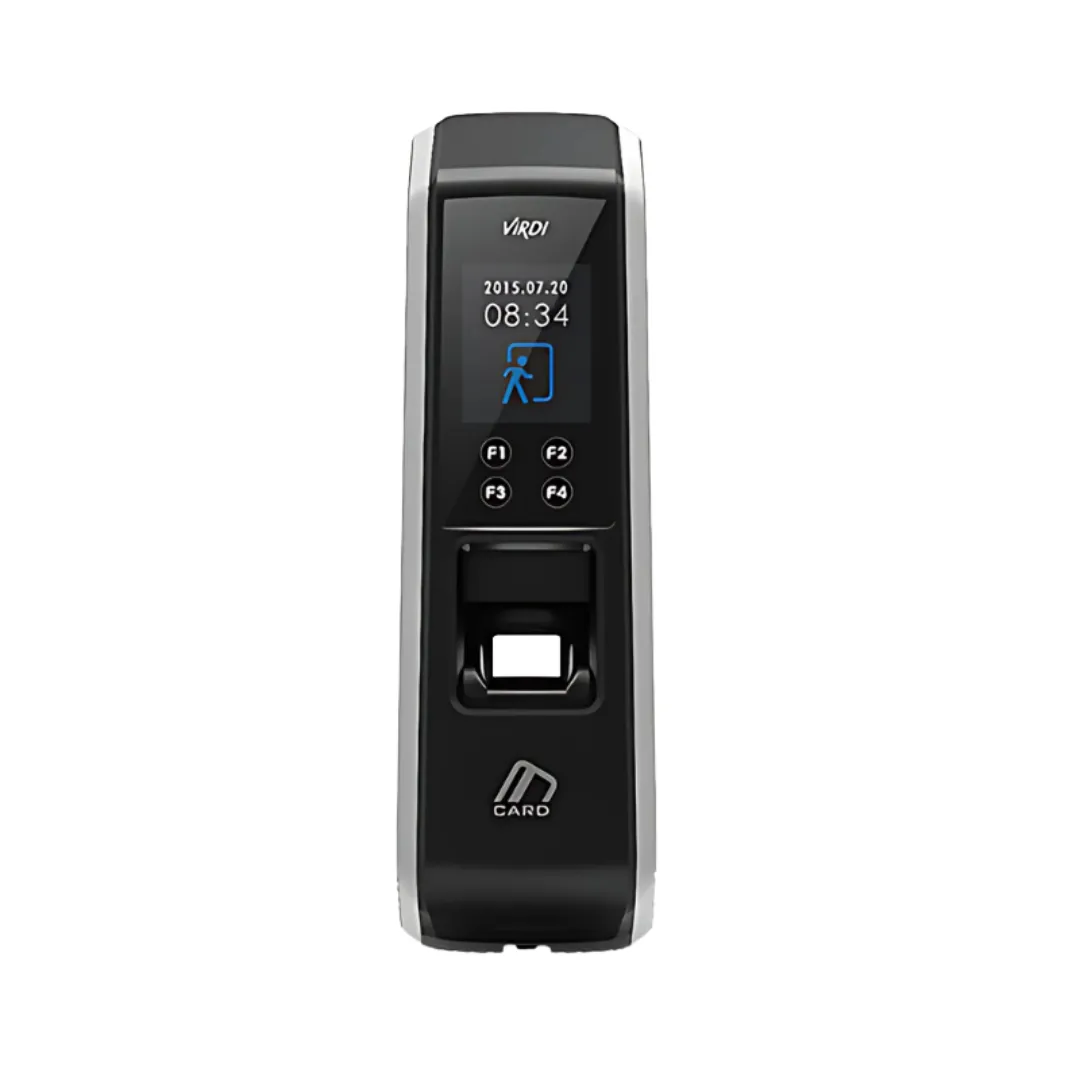

The AC-2200 Reader (Access Control – 2200) is a premium reader designed and engineered by Virdi to provide the ultimate solution for access control to today’s high-end facilities and environments. The high-end 7.5 cm (1.77″) Color high quality LCD display with finger creation facility along with High Definition quality embedded camera in the reader stores finger print data of up to 10,000 users along with 100,000 event logs in its 32MB memory. The weatherproof IP65 rated casing of AC-2200 can be surface mounted outdoors, which means it can withstand harsh weather and dusty environments, to operate without any problem. It is also fully compatible with control systems for access control, thanks to its OSDP (Open Supervised Device Protocol) compliance. This makes the outdoor fingerprint and card reader ideal for facilities where people holding a fingerprint and card will require access, such as secure office buildings and facilities.
IP65 Dust & Waterproof
- Ingress protected enclosure,
- keeping out dust moisture ensures faultless operation even under unfavorable conditions.
- Perfect for outdoor applications
Live Finger Detection Technology
With our Live Finger Detection Technology, Distinguishes fake finger made from various materials such as gelatin, rubber, silicone, paper etc. including gelatin, rubber, silicone, paper and more. including gelatin, rubber, silicone, paper and more.
Advanced Digital Camera
storing image logs as soon authenticate.
Bringing Safe and Secure Access Control to Your Work Place Environment
A Heavy Duty, Premium Quality, Outdoor use Fingerprint Terminal and Card Reader AC-2200 from Virdi Access Control. This weather & dust proof IP65 rated, heavy duty and robust, high-end quality Premium Grade, Premium Quality & Premium Brand, Outdoor use Fingerprint Terminal and Card Reader AC-2200 is designed and engineered to provide
for a wide variety of modern-day facilities including Hotels, Hospitals, Factory Units, Office Buildings, Data Centers, Server Rooms, etc..
Specifications
Manufacturer specifications, UNION Biometrics.
| Model | AC2200 |
| Authentication Method | Fingerprint/Card |
| Dust/ Water Resistance | IP65 |
| Memory — Max Users — Card — (1:1) / (1:N) | 10,000 |
| Fingerprint (Base on one finger enrollment per user) — 1:1 | 10,000 |
| 1:N | 5,000 |
| Templates — Fingerprint — 1:1 | 20,000 |
| 1:N | 10,000 |
| MAX Templates per Finger | 2 |
| MAX Finger per User | 10 |
| Logs | 100,000 |
| Images | 10,000 |
| Communication — with server | TCP/IP |
| Other | Bluetooth/USB |
| Wireless LAN(Wi-Fi) | X |
| Wiegand OUT | O |
| RS232 | X |
| RS485 | OSDP |
| Wiegand IN | O |
| Display — LCD | 1.77″Color LCD |
| Backlight | O |
| Card — 125khz-EM | O |
| HID Prox | X |
| HID iclass | X |
| 13.56MHz Smart Card | O |
| Embedded Camera | O |
| Keypad | X |
| Function keys | 4 |
| Door Phone | X |
| FP Sensor (Platen Area) | 14.8 X 17.9mm |
| Resolution | 500 dpi |
| Dimension(W) X (H) X (D) mm | 58 X 187.9 X 51.6 |
| FRR /FAR | 0.1% /0.0001% |
| Operating Illuminance (lux) | X |
| Operating Temperature | -20 ~ 60℃ |
| Opertating Software (Server solution) | UNIS |
