Description
Walk-Through Face Recognition Up to 4 Meters

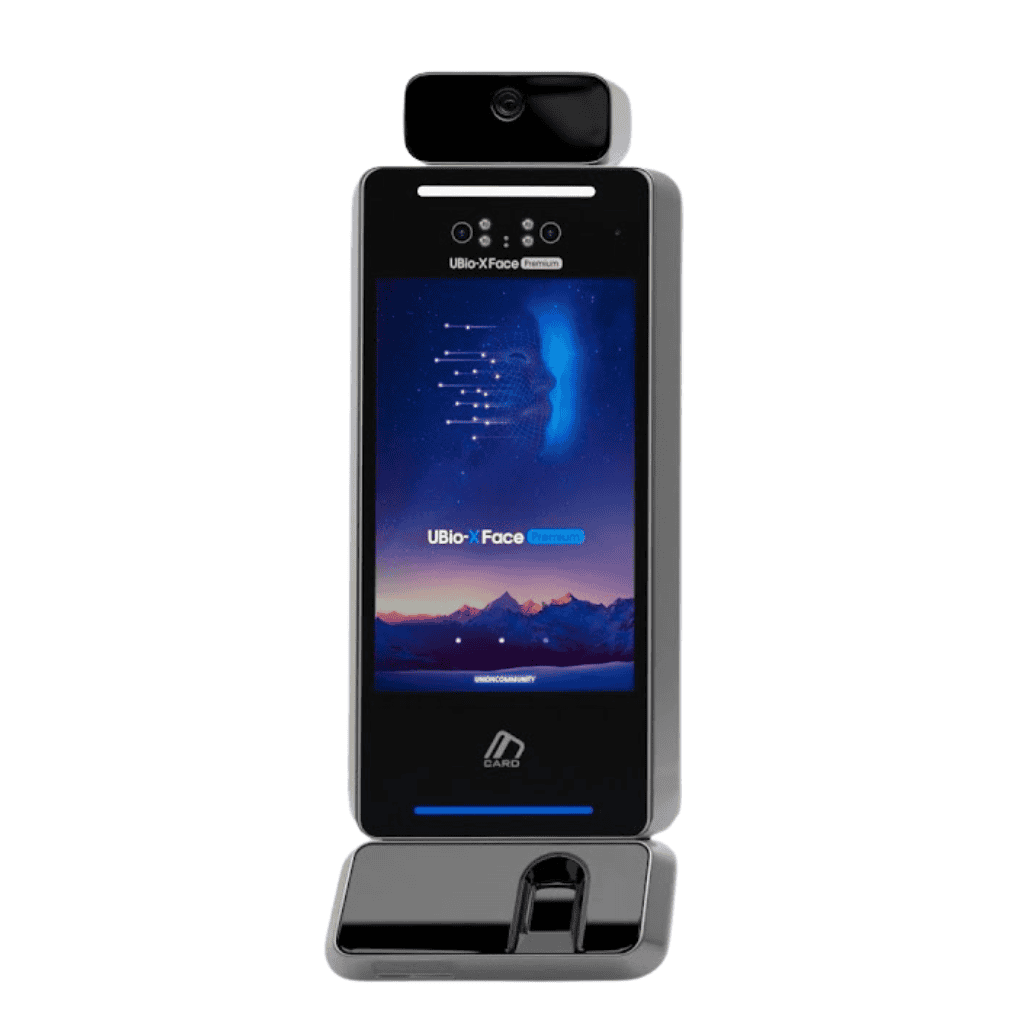

What makes the UBio-X Face Premium stand out from standard face recognition devices is its ability to authenticate users while they are still walking — no stopping, no positioning, no delay. The device detects and verifies faces from a distance of up to 4 meters, making it ideal for building entrances, turnstile lanes, corporate lobbies, and any high-traffic access point where a seamless entry experience is essential. It can even authenticate multiple faces simultaneously as users walk through gates together, keeping queues from forming during peak hours.
Large 8-Inch Touchscreen Display
The UBio-X Face Premium features a slim and compact body with a large 8-inch full-colour LCD touch screen — significantly larger than most biometric terminals on the market. This gives users a clear, intuitive interface and allows administrators to display instructions, branding, or access status messages directly on the device screen. Despite the larger display, the terminal maintains a sleek profile that fits cleanly into modern office and building environments.
Multiple Authentication Methods in One Device
The UBio-X Face Premium is not limited to face recognition alone. By integrating the UBio-X FQR sensor module, the device supports a full range of authentication options that can be configured to suit your organization’s security policy:
- Face recognition (walk-through, up to 4 meters)
- Fingerprint scanning
- QR code authentication
- Mobile access card (iOS and Android)
- Smart card / RFID card
- PIN code
- Multi-factor combinations for higher security zones
This flexibility means the same device can serve different areas of a facility with different security requirements — standard face-only access at the main entrance, two-factor authentication for server rooms or restricted zones.
Advanced Liveness Detection and Anti-Spoofing
Security is only as strong as the system’s ability to detect deception. The UBio-X Face Premium uses advanced liveness detection technology that identifies and blocks spoofing attempts even when the user is wearing a mask. It actively prevents unauthorized access attempts using printed photos, videos, and 3D face masks — ensuring that only real, live users can authenticate. Three levels of mask detection allow administrators to configure how the device responds when a mask is detected, from warning users to outright denying access.
Thermal Detection Integration
The UBio-X Face Premium can be integrated with a thermal camera module to measure body temperature at the point of authentication. If a user’s temperature exceeds the set threshold, access is automatically denied and the event is logged on the server — a feature adopted by hospitals, government buildings, schools, and corporate campuses requiring health screening at entry points.
Capacity and Storage
- Up to 100,000 face templates
- Up to 250,000 fingerprint templates
- 10,000,000 event logs
- 20,000 photo logs
This capacity makes the UBio-X Face Premium suitable for large organizations with hundreds or thousands of registered users, including multi-site deployments managed from a central server.
Seamless System Integration
The UBio-X Face Premium connects via TCP/IP with optional Wi-Fi, and supports Wiegand output for integration with existing access control hardware. It is compatible with leading access control and time attendance software platforms including UBio Alpeta, making it straightforward to add to your current security infrastructure without replacing what you already have. Remote user enrollment via smartphone photo upload is also supported, reducing the time and effort needed to onboard large numbers of staff.
Ideal For
The UBio-X Face Premium is trusted across sectors where contactless, high-speed authentication and premium build quality are non-negotiable — including corporate headquarters, government offices, financial institutions, military facilities, hospitals, airports, and large educational campuses.
Specifications
Manufacturer specifications, UNION Biometrics.
| Model | UBio-X Face Premium |
| General — CPU | cortex A53 Quad Core 1.8GHz |
| NPU | O (2.3 TOPS) |
| OS | Android 11 |
| MEMORY — Flash | 16G eMMC |
| RAM | 4G (LPDDR4) |
| LCD — type | 8′ (TFT IPS LCD) |
| Resolution | 800 X 1280 |
| Speaker | Audio Codec 1W |
| MIC | Waterproof MIC |
| Operating Temperature | -20℃~60℃ |
| Operating Humidity | 0% ~ 90% non-condensing |
| Weight | 980g |
| Dimension (W x H x D) mm | 143.3 X 289.5 X 23.8 |
| Temper | ✓ |
| IP Rating | IP55 (IP65 optional) |
| IK Rating | IK06 |
| Certificates | KC / CE / FCC |
| Biomatrics — Face — Recognition Distance | 0.5M~4M |
| Matching Speed | <1 sec |
| Liveness Detection (Anti-Spoofing) | ✓ |
| FingerPrint — Template | 100,000 |
| Extractor / Matcher | MINEX certified and compliant |
| Image Dimension | 256*292 (12.6 * 14.8 mm) |
| Resolution | 500 DPI |
| Certification | Virdi, ISO 1974-2, ANSI-378 |
| LFD | ✓ |
| RF — RF Read Range1) — EM | 50 mm |
| Smart Card | 50 mm |
| DESFIRE EV1 / EV2 / EV3 | 45 mm |
| FELICA | 30 mm |
| RF Option — 125KHz EM | All in One |
| 13.56MHz Smart Card | |
| Mifare (Plus) | |
| Felica | |
| ISO14443 A/B | |
| ISO 15693 | |
| DESFIRE EV1 / EV2 / EV3 | |
| HID Prox | Option |
| HID iCLASS | Option |
| Mobile Card — NFC | Support |
| BLE | Support |
| QR2) — Image Sensor | 640 X 480 |
| Symbologies | 1D / 2D |
| FOV (H x V) | 42° x 31.5° |
| Mobile Phone (iOS) | Iphone : iOS 10.0 or above / BLE4.2 or above |
| Mobile Phone (Android) | Android 6.0 or above / NFC Supported Device |
| Encryption | Azure Key Vault / AES-256 |
| Recognition Distance | 10cm (difference in models) |
| Server Platform | On Premise / Cloud |
| Capacity — Face (Based on one face Template per User) — 1:N | 30,000 (50,000 Option) |
| 1:1 | 100,000 |
| TAR | 97.99% |
| FAR | 0.0001% |
| FingerPrint (Based on two Fingerprint Template per User) — 1:N | 50,000 |
| 1:1 | 500,000 |
| TAR | 99.9% |
| FAR | 0.00001% |
| Card — (1:1)/(1:N) | 500,000 |
| Event Log | 10,000,000 |
| Picture Log | 20,000 |
| Interface — ethernet | 10/100M / 1000M 1Port |
| RS-485 | 1 Port |
| RS-232 | 2 Port |
| Wiegand | IN/OUT 1Port |
| Relay | 2 |
| USB — USB 2.0 | Host 1 Port |
| USB 3.0 | OTG 1 Port (C Type) |
| Wifi | Option |
| Power — Voltage | DC 15V~24V |
| Current | Max 1.5A @DC15V |
