Description
The fingerprint terminal is proof that excellent design and competent security don’t have to be mutually exclusive.
Premium Design That Fits Any Environment

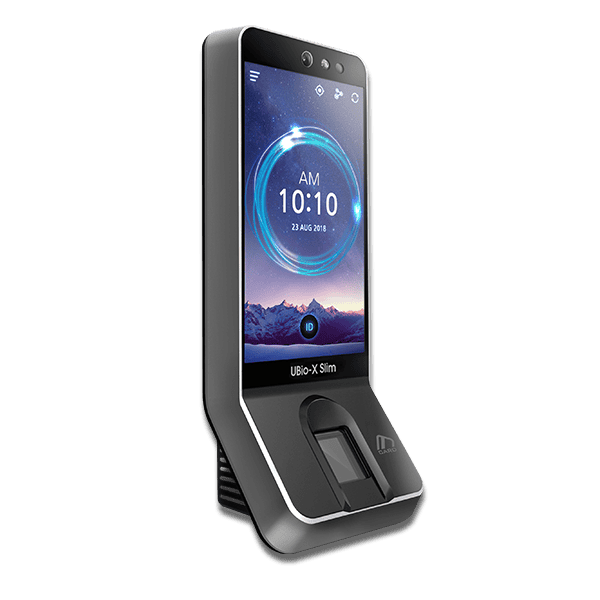

At just 23.5mm deep at its slimmest point, the UBio-X Slim is one of the thinnest biometric terminals available. The sleek, all-black casing with a 5-inch colour TFT LCD touchscreen covered by reinforced glass gives it a premium finish that complements modern office interiors, hotel lobbies, financial institution branches, and high-end retail environments. For organizations where the look of their security hardware matters alongside its performance, the UBio-X Slim is the clear choice.
Fast, Accurate Fingerprint Authentication
Powered by a 1.4 GHz Quad-Core CPU with 2 GB RAM and 8 GB flash memory, the UBio-X Slim processes fingerprint authentication in under one second with consistently high accuracy. The 500 dpi fingerprint sensor captures detailed ridge data with a platen area of 16.4 x 19.4mm, delivering reliable matching even with worn, dry, or slightly damaged fingerprints that cheaper sensors struggle to read.
Patented Live Fingerprint Detection (LFD)
The UBio-X Slim incorporates VIRDI’s patented Live Fingerprint Detection technology — the same technology that has earned VIRDI top rankings in global fingerprint algorithm competitions (FVC). The LFD system uses visible light to detect and reject fake fingerprints made from gelatin, silicone, rubber, glue, paper, and film. This level of anti-spoofing protection makes the UBio-X Slim a trusted choice for banking, law enforcement support, and any environment where fingerprint fraud is a genuine risk.
Multi-Card Support Built In
Beyond fingerprint recognition, the UBio-X Slim supports both 125 KHz EM RF cards and 13.56 MHz smart cards — covering the two most common card standards used across UAE and Middle East organizations. Users can authenticate with a fingerprint, a card, a PIN, or a combination of these, giving administrators full flexibility to configure access levels by area or by user group.
Large Memory for Enterprise Scale
- Up to 500,000 users
- Up to 200,000 fingerprint templates (1:N matching in under 1 second)
- 10,000,000 event logs
- 50,000 photo logs
This storage capacity makes the UBio-X Slim equally suited to a small office with 50 staff or a large enterprise facility with thousands of registered users.
Connectivity and Integration
The UBio-X Slim connects via TCP/IP, RS-232, RS-485, USB 2.0, and Wiegand, with optional Wi-Fi available. It is fully compatible with UBio Alpeta server software, allowing centralized management of users, access schedules, and attendance reporting across multiple terminals and locations from a single platform.
Authentication Methods
- Fingerprint scanning with Live Finger Detection
- Smart card — 13.56 MHz
- RF card — 125 KHz EM
- PIN code
- Multi-factor combinations
Ideal For
Corporate offices, bank branches, hotels, retail chains, educational institutions, government buildings, and any environment that requires reliable fingerprint access control in a device that is as visually refined as it is technically capable.
Specifications
Manufacturer specifications, UNION Biometrics.
| Model | UBio-X Slim |
| Authentication Method | Fingerprint/Card |
| Dust/ Water Resistance | X |
| Memory — Max Users — Card — (1:1) / (1:N) | 500,000 |
| Fingerprint (Base on one finger enrollment per user) — 1:1 | 100,000 |
| 1:N | 100,000 |
| Templates — Fingerprint — 1:1 | 200,000 |
| 1:N | 200,000 |
| MAX Templates per Finger | 2 |
| MAX Finger per User | 10 |
| Logs | 10,000,000 |
| images | 50,000 |
| communication — with server | TCP/IP |
| other | USB |
| Wireless LAN(Wi-Fi) | Optional |
| Wiegand OUT | O |
| RS232 | O |
| RS485 | O |
| Wiegand IN | O |
| Display — LCD | 5”Color Touch |
| Backlight | O |
| Card — 125khz-EM | O |
| HID Prox | O |
| HID iclass | O |
| 13.56MHz Smart Card | O |
| Embedded Camera | O |
| Keypad | Touch Screen |
| Function keys | SOFT |
| Door Phone | X |
| FP Sensor (Platen Area) | 16.4 x 19.4mm |
| Resolution | 500dpi |
| Dimension(W) X (H) X (D) mm | 80 x 195.6 x 23.5 (Upper) / 54.67(Lower) |
| FRR /FAR | 0.1% / 0.0001% |
| Operating Illuminance (lux) | X |
| Operating Temperature | -20 ~ 60℃ |
| Opertating Software (Server solution) | UBio Alpeta |
| Mobile Access Card System(NFC/BLE) — Mobile Phone Specification | iPhone : iOS 10.0 or later / BLE4.2 or later Android : Android 6.0 or later / Supports NFC |
| Security / Encryption | Azure Key Vault / AES-256 |
| Distance / Range | Under 10cm (It may differ depending on smartphones) |
| Server Platform | On-Premise / Cloud |
